MC33A

MC33A

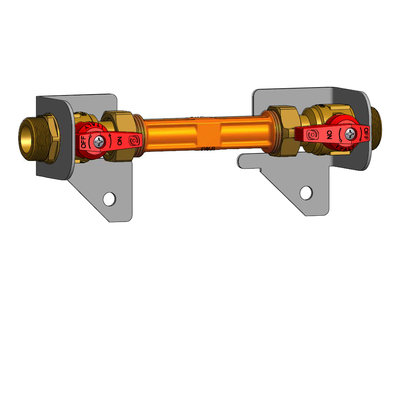

Domestic hot water unit with brackets for Equicompact®/Equidynamic metering modules.

Download

Dt_MC33A.pdf (Technical drawing - PDF)

EQUICOMPACT.pdf (Brochure)

= Tender description

Code	Domestic water units	Suitable Cabinet	Price	Class	Packaging
506628S	HOT (Q3 2,5 m³/h) - G 3/4”	AC 860 B - AC 860 L	74,03 €	UA	2
