EQCP13 I

EQCP13 I

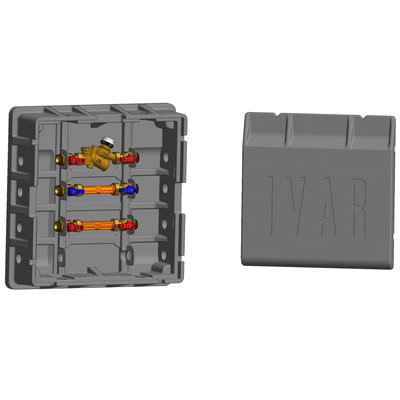

Equicompact® metering module for heating and cooling systems with units for heat and domestic hot water.

Download

300451_04_17.pdf (Instructions)

Dt_EQCP1I.pdf (Technical drawing - PDF)

EQUICOMPACT.pdf (Brochure)

I_EQCP_EN.pdf (Data sheets)

Video

= Tender description

Code	Heat unit	Domestic water units	Suitable Cabinet	Price	Class	Packaging
506638CIB	Kv 2,50 (Qn 1,5 m³/h) - G 3/4”	HOT (Q3 2,5 m³/h) - G 3/4”	AC 860 IB (Included)	580,89 €	UA	1
