CI 589 MNA

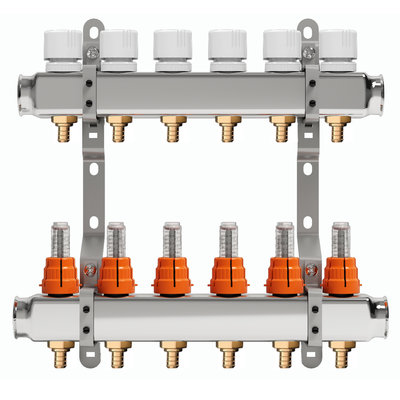

BSP kit made of stainless steel flow manifold with flow meter/adjuster FLUXER, stainless steel return manifold with manually operated isolation valves, pre-assembled supports and crimping fittings for PEX and PERT pipe.
Download
= Tender description
| Code | Ways | Size US | Weight(lb) | Class | Packaging |
|---|---|---|---|---|---|
| 503202MNA1 | 2 | 1“ BSP x Pipe 1/2“ | 2.34 lb | OB | 1 |
| 503203MNA1 | 3 | 1“ BSP x Pipe 1/2“ | 3.70 lb | OB | 1 |
| 503204MNA1 | 4 | 1“ BSP x Pipe 1/2“ | 4.45 lb | OB | 1 |
| 503205MNA1 | 5 | 1“ BSP x Pipe 1/2“ | 5.25 lb | OB | 1 |
| 503206MNA1 | 6 | 1“ BSP x Pipe 1/2“ | 5.97 lb | OB | 1 |
| 503207MNA1 | 7 | 1“ BSP x Pipe 1/2“ | 6.79 lb | OB | 1 |
| 503208MNA1 | 8 | 1“ BSP x Pipe 1/2“ | 7.56 lb | OB | 1 |
| 503209MNA1 | 9 | 1“ BSP x Pipe 1/2“ | 8.33 lb | OB | 1 |
| 503210MNA1 | 10 | 1“ BSP x Pipe 1/2“ | 9.08 lb | OB | 1 |
| 503211MNA1 | 11 | 1“ BSP x Pipe 1/2“ | 9.88 lb | OB | 1 |
| 503212MNA1 | 12 | 1“ BSP x Pipe 1/2“ | 10.60 lb | OB | 1 |
| 503213MNA1 | 13 | 1“ BSP x Pipe 1/2“ | 11.42 lb | OB | 1 |
| 503202MNA2 | 2 | 1“ BSP x Pipe 3/4“ | 2.34 lb | OB | 1 |
| 503203MNA2 | 3 | 1“ BSP x Pipe 3/4“ | 3.70 lb | OB | 1 |
| 503204MNA2 | 4 | 1“ BSP x Pipe 3/4“ | 2.89 lb | OB | 1 |
| 503205MNA2 | 5 | 1“ BSP x Pipe 3/4“ | 5.25 lb | OB | 1 |
| 503206MNA2 | 6 | 1“ BSP x Pipe 3/4“ | 5.97 lb | OB | 1 |
| 503207MNA2 | 7 | 1“ BSP x Pipe 3/4“ | 6.79 lb | OB | 1 |
| 503208MNA2 | 8 | 1“ BSP x Pipe 3/4“ | 7.56 lb | OB | 1 |
| 503209MNA2 | 9 | 1“ BSP x Pipe 3/4“ | 8.33 lb | OB | 1 |
| 503210MNA2 | 10 | 1“ BSP x Pipe 3/4“ | 9.08 lb | OB | 1 |
| 503211MNA2 | 11 | 1“ BSP x Pipe 3/4“ | 9.88 lb | OB | 1 |
| 503212MNA2 | 12 | 1“ BSP x Pipe 3/4“ | 10.60 lb | OB | 1 |
| 503213MNA2 | 13 | 1“ BSP x Pipe 3/4“ | 11.42 lb | OB | 1 |
