CI 595 MNUS

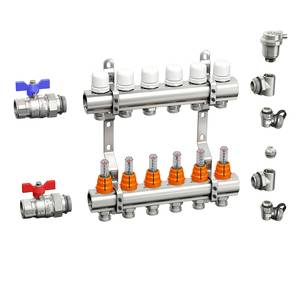

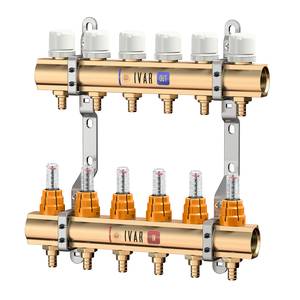

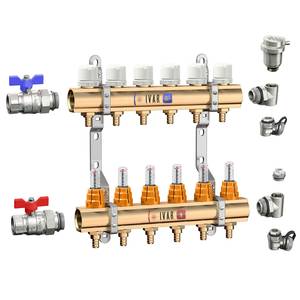

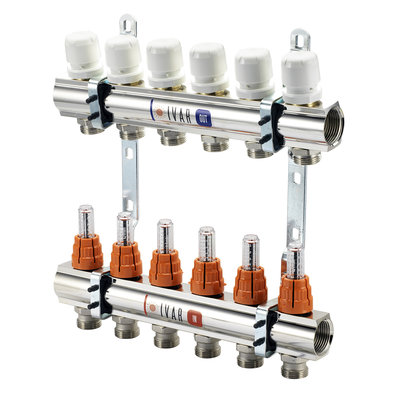

Kit made of brass flow manifold with flow meter/adjuster FLUXER, brass return manifold with manually operated isolation valves, pre-assembled fittings and supports.
= Tender description
| Code | Ways | Size US | Color | Depth | Suitable Cabinet | Cabinet width | Weight(lb) | Price | Class | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|
| 500082MNUS | 2 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200086 | 500 mm | 4.34 lb | 102.52 $ | NE | 1 |
| 500083MNUS | 3 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200086 | 500 mm | 5.89 lb | 143.33 $ | NE | 1 |
| 500084MNUS | 4 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200086 | 500 mm | 7.39 lb | 183.72 $ | NE | 1 |
| 500085MNUS | 5 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200086 | 500 mm | 8.95 lb | 224.33 $ | NE | 1 |
| 500086MNUS | 6 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200086 | 500 mm | 10.43 lb | 265.03 $ | NE | 1 |
| 500087MNUS | 7 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200086 | 500 mm | 11.95 lb | 305.61 $ | NE | 1 |
| 500088MNUS | 8 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200086 | 500 mm | 13.49 lb | 346.22 $ | NE | 1 |
| 500089MNUS | 9 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200686 | 600 mm | 14.75 lb | 387.17 $ | NE | 1 |
| 500090MNUS | 10 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200686 | 600 mm | 16.56 lb | 426.42 $ | NE | 1 |
| 500091MNUS | 11 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200186 | 700 mm | 18.01 lb | 468.64 $ | NE | 1 |
| 500092MNUS | 12 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200186 | 700 mm | 19.62 lb | 508.87 $ | NE | 1 |
| 500093MNUS | 13 | 1“ BSP x 3/4“ EUROK |
|
110 mm | 200786 | 800 mm | 21.14 lb | 551.76 $ | NE | 1 |
| 502142MNUS | 2 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200086 | 500 mm | 5.05 lb | 114.14 $ | NE | 1 |
| 502143MNUS | 3 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200086 | 500 mm | 6.81 lb | 159.36 $ | NE | 1 |
| 502144MNUS | 4 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200086 | 500 mm | 8.55 lb | 204.80 $ | NE | 1 |
| 502145MNUS | 5 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200086 | 500 mm | 10.27 lb | 250.09 $ | NE | 1 |
| 502146MNUS | 6 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200086 | 500 mm | 12.04 lb | 295.44 $ | NE | 1 |
| 502147MNUS | 7 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200086 | 500 mm | 13.82 lb | 340.80 $ | NE | 1 |
| 502148MNUS | 8 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200086 | 500 mm | 15.59 lb | 386.11 $ | NE | 1 |
| 502149MNUS | 9 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200686 | 600 mm | 17.26 lb | 431.42 $ | NE | 1 |
| 502150MNUS | 10 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200686 | 600 mm | 19.05 lb | 476.67 $ | NE | 1 |
| 502151MNUS | 11 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200186 | 700 mm | 20.75 lb | 522.09 $ | NE | 1 |
| 502152MNUS | 12 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200186 | 700 mm | 22.53 lb | 567.37 $ | NE | 1 |
| 502153MNUS | 13 | 1 1/4" BSP x 3/4" EUROK |
|
110 mm | 200786 | 800 mm | 24.27 lb | 612.73 $ | NE | 1 |
