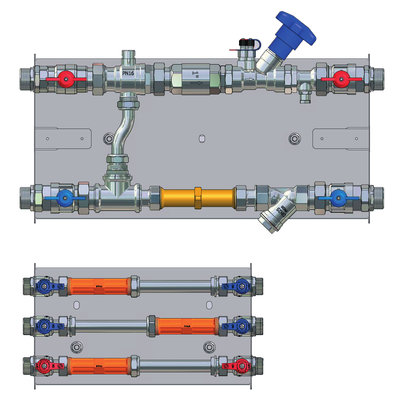

MC12 (Kv 3,50) - MC22 (Kv 7,00)

MC12 (Kv 3,50) - MC22 (Kv 7,00)

MC1/MC2 metering module for heating and cooling systems with units for heat, domestic hot water, domestic cold water and dual cold water

= Tender description

Code	Heat unit	Domestic water units	Suitable Cabinet	Cabinet width	Price	Class	Packaging
506503	Kv 3,50 (Qn 2,5 m³/h) - G 1”	HOT+COLD+DUAL (Q3 2,5 m³/h) - G 3/4”	200090	700 mm	921,99 €	UA	1
506504	Kv 3,50 (Qn 2,5 m³/h) - G 1”	HOT+COLD+DUAL (Q3 4 m³/h) - G 1”	200090	700 mm	1.077,43 €	UA	1
506513	Kv 7,00 (Qn 3,5 - 6 m³/h) - G 1"1/4	HOT+COLD+DUAL (Q3 2,5 m³/h) - G 3/4”	200190	900 mm	963,21 €	UA	1
506514	Kv 7,00 (Qn 3,5 - 6 m³/h) - G 1"1/4	HOT+COLD+DUAL (Q3 4 m³/h) - G 1”	200190	900 mm	1.118,65 €	UA	1
